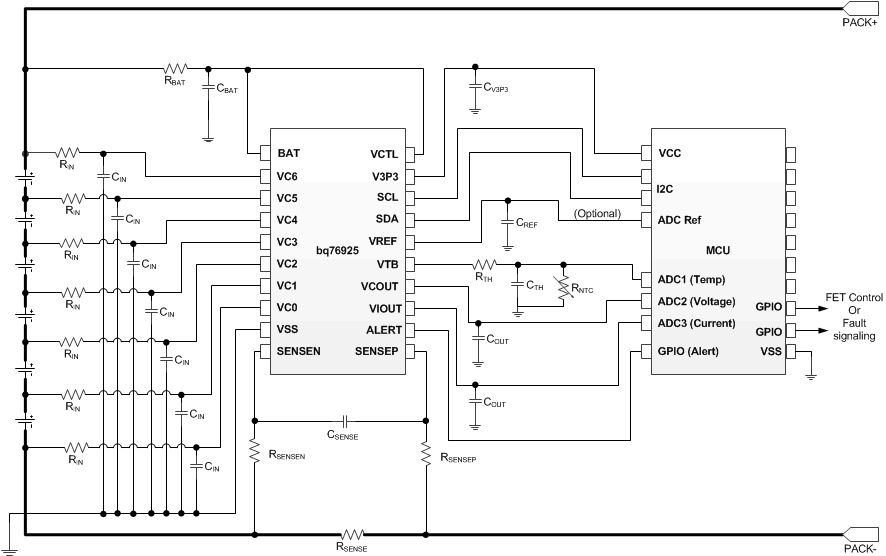

BQ76925 - 产品图解:
BQ76925-用于 3 至 6 节锂离子电池的模拟前端
BQ76925-电池监控,保护及认证解决方案-电池管理产品-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - BQ76925介绍
BQ76925 - 用于 3 至 6 节锂离子电池的模拟前端

BQ76925是TI公司的一款电池监控,保护及认证解决方案产品,BQ76925是用于 3 至 6 节锂离子电池的模拟前端,本页介绍了BQ76925的产品说明、应用、特性等,并给出了与BQ76925相关的TI元器件型号供参考。

BQ76925 - 用于 3 至 6 节锂离子电池的模拟前端 - 电池监控,保护及认证解决方案 - 电池管理产品 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Analog Interface for Host Cell Measurement
    • Cell Input MUX, Level Shifter, and Scaler
    • 1.5-/ 3.0-V Low-Drift, Calibrated Reference Allows Accurate Analog-to-Digital Conversions
  • Analog Interface for Host Current Measurement
    • Variable Gain Current Sense Amplifier Capable of Operation with 1-mΩ Sense Resistor
  • Switchable Thermistor Bias Output for Host Temperature Measurements
  • Overcurrent Comparator With Dynamically Adjustable Threshold
    • Alerts Host to Potential Overcurrent Faults
    • Wakes up Host on Load Connect
  • Integrated Cell Balancing FETs
    • Individual Host Control
    • 50 mA per Cell Balancing Current
  • Supports Cell Sense-Line Open Wire Detection
  • Integrated 3.3-V Regulator for Powering Micro-Controller and/or LEDs
  • I2C Interface for Host Communications
    • Optional Packet CRC for Robust Operation
  • Supply Voltage Range From 4.2 to 26.4 V
  • Low Power Consumption
    • 40 µA Typical in Normal Mode
    • 1.5 µA Maximum in Sleep Mode
  • 20-Pin TSSOP or 24-Pin VQFN Package
产品应用
  • Primary Protection in Li-Ion Battery Packs
    • Cordless Power Tools
    • Light Electric Vehicles (E-Bike, Scooter, etc.)
    • UPS Systems
    • Medical Equipment
    • Portable Test Equipment
产品说明

The bq76925 host-controlled analog front end (AFE) is part of a complete pack monitoring, balancing, and protection system for 3-, 4-, 5-, or 6-series cell Li-Ion and Li-Polymer batteries. The bq76925 device allows a Host controller to monitor individual cell voltages, pack current and temperature easily. The Host may use this information to determine unsafe or faulty operating conditions such as overvoltage, under- voltage, overtemperature, overcurrent, cell imbalance, state of charge, and state of health conditions.

Cell input voltages are level-shifted, multiplexed, scaled, and output for measurement by a Host ADC. A dedicated pin provides a low-drift calibrated reference voltage to enable accurate measurements.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
bq76925TSSOP (20)4.00 mm × 4.00 mm
bq76925VQFN (24)6.50 mm × 4.40 mm
