BQ771600是TI公司的一款电池监控,保护及认证解决方案产品，BQ771600是用于 2 至 4 节锂离子电池（具有外部延迟电容器）的过压保护，本页介绍了BQ771600的产品说明、应用、特性等，并给出了与BQ771600相关的TI元器件型号供参考。
BQ771600 - 用于 2 至 4 节锂离子电池（具有外部延迟电容器）的过压保护 - 电池监控,保护及认证解决方案 - 电池管理产品 - TI公司（Texas Instruments，德州仪器）
- 2-, 3-, and 4-Series Cell Overvoltage Protection
- External Capacitor-Programmed Delay Timer
- Fixed OVP Threshold
- High-Accuracy Overvoltage Protection: ±10 mV
- Low Power Consumption ICC ≈ 1 µA (VCELL(ALL) < VPROTECT)
- Low Leakage Current Per Cell Input < 100 nA
- Small Package Footprint
- 8-pin WSON (3.00 mm × 4.00 mm)
- Power Tools
- UPS Battery Backup
- Light Electric Vehicles
- eBike
- eScooter
- Pedal Assist Bicycles

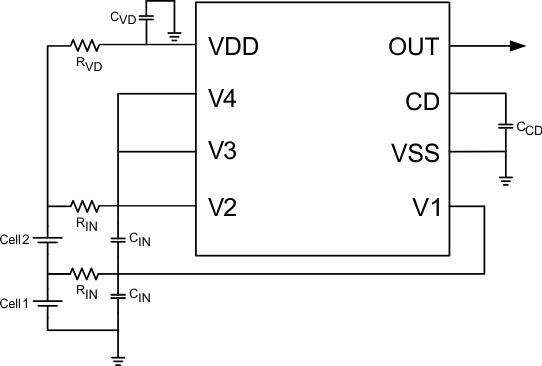

The bq7716xy device family provides an overvoltage monitor and protector for Li-Ion battery pack systems. Each cell is monitored independently for an overvoltage condition. For quicker production-line testing, the bq7716xy device provides a Customer Test Mode with greatly reduced delay time.
In the bq7716xy device, an external delay timer is initiated upon detection of an overvoltage condition on any cell. Upon expiration of the delay timer, the output is triggered into its active state (either high or low, depending on the configuration). The external delay timer feature also includes the ability to detect an open or shorted delay capacitor on the CD pin, which will similarly trigger the output driver in an overvoltage condition.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| bq771600 | WSON (8) | 3.00 mm × 4.00 mm |
