• 25 and 150-Mbps Signaling Rate Options
  • Low Channel-to-Channel Output Skew; 1 ns Max
  • Low Pulse-Width Distortion (PWD); 2 ns Max
  • Low Jitter Content; 1 ns Typ at 150 Mbps
• Selectable Default Output (ISO7240CF)
• > 25-Year Life at Rated Working Voltage (See Application Note SLLA197 and Figure 16)
• 4 kV ESD Protection
• Operates With 3.3-V or 5-V Supplies
• High Electromagnetic Immunity (See Application Report SLLA181)
• –40°C to 125°C Operating Temperature Range
• Safety and Regulatory Approvals:
  • VDE 4000 VPK Basic Insulation per DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
  • 2.5 kVRMS Isulation for 1 minute per UL 1577
  • CSA Component Acceptance Notice #5A and IEC 60950-1 End Equipment Standard

• Industrial Fieldbus
• Computer Peripheral Interface
• Servo Control Interface
• Data Acquisition

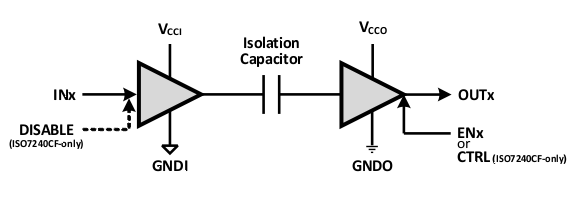

The ISO7240, ISO7241 and ISO7242 are quad-channel digital isolators with multiple channel configurations and output enable functions. These devices have logic input and output buffers separated by TI’s silicon dioxide (SiO2) isolation barrier. Used in conjunction with isolated power supplies, these devices block high voltage, isolate grounds, and prevent noise currents from entering the local ground and interfering with or damaging sensitive circuitry.

The ISO7240 has all four channels in the same direction while the ISO7241 has three channels in the same direction and one channel in opposition. The ISO7242 has two channels in each direction.
