• Three Highly Efficient Programmable Buck Regulators
  • Buck Regulator Outputs:
    • Buck 1: 1.1 V to 3.6 V; 1.3 A
    • Buck 2: 1.1 V to 3.6 V; 400 mA
    • Buck 3: 0.7 V to 1.335 V; 600 mA
  • ±3% Feedback Voltage Accuracy
  • Up to 95% Efficient Buck Regulators
  • 2MHz Switching Frequency for Smaller Inductor Size
  • Integrated FETs with Low RDSON
  • Bucks Operate With Their Phases Shifted to Reduce the Input Current Ripple and Capacitor Size
  • Programmable Output Voltage via the SPI™ Interface
  • Overvoltage and Undervoltage Lockout
  • Automatic Internal Soft Start With Power-On Reset
  • Current Overload and Thermal Shutdown Protection
  • Bypass Mode Available on Bucks 1 and 2
  • PFM Mode for Low-Load, High-Efficiency Operation
• Low-Dropout LDO 3.2 V, 100 mA
• SPI-Programmable Interrupt Comparator (2 V to 4 V)
• Alternate Buck VOUT Selectable via H/L Logic Pins
• RESET, STANDBY Pins

Solid-State Drives

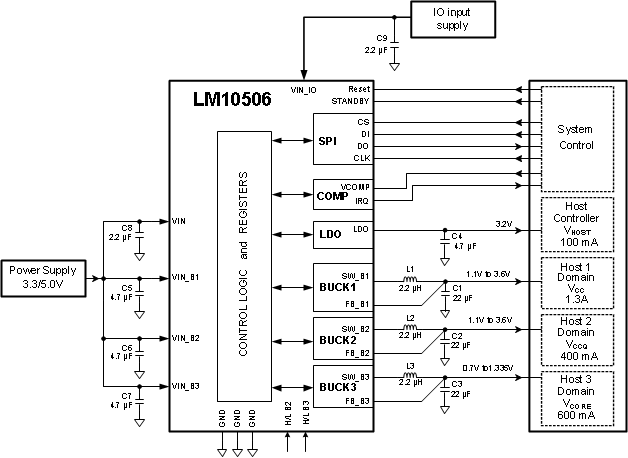

The LM10506 is an advanced PMU containing three configurable, high-efficiency buck regulators for supplying variable voltages. The device is ideal for supporting ASIC and SOC designs for Solid-State and Flash drives.

The LM10506 operates cooperatively with ASIC to optimize the supply voltage for low-power conditions and Power Saving modes via the SPI interface. It also supports a 100-mA LDO and a programmable Interrupt Comparator.
