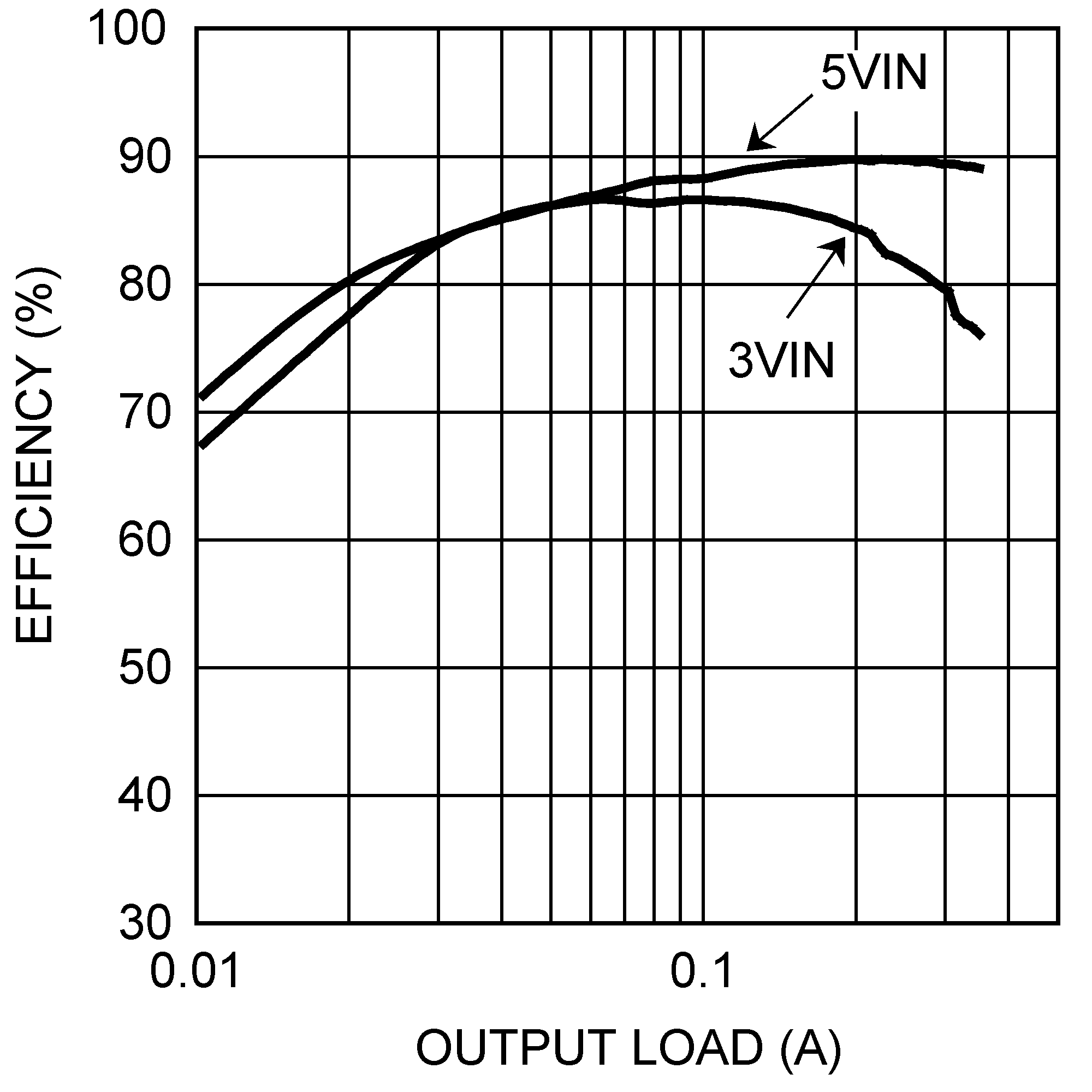

LM2735 - 产品图解:
LM2735-520kHz/1.6MHz - 节省空间的升压和 SEPIC DC-DC 稳压器
LM2735-转换器(集成开关)-DC/DC开关稳压器-电源管理
LM2735-LM2735-xx 520-kHz and 1.6-MHz Space-Efficient Boost and SEPIC DC-DC Regulator
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - LM2735介绍
LM2735 - 520kHz/1.6MHz - 节省空间的升压和 SEPIC DC-DC 稳压器

LM2735是TI公司的一款转换器(集成开关)产品,LM2735是520kHz/1.6MHz - 节省空间的升压和 SEPIC DC-DC 稳压器,本页介绍了LM2735的产品说明、应用、特性等,并给出了与LM2735相关的TI元器件型号供参考。

LM2735 - 520kHz/1.6MHz - 节省空间的升压和 SEPIC DC-DC 稳压器 - 转换器(集成开关) - DC/DC开关稳压器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Input Voltage Range: 2.7 V to 5.5 V
  • Output Voltage Range: 3 V to 24 V
  • 2.1-A Switch Current Over Full Temperature Range
  • Current-Mode Control
  • Logic High Enable Pin
  • Ultra-Low Standby Current of 80 nA in Shutdown
  • 170-mΩ NMOS Switch
  • ±2% Feedback Voltage Accuracy
  • Ease-of-Use, Small Total Solution Size
    • Internal Soft Start
    • Internal Compensation
    • Two Switching Frequencies
    • 520 kHz (LM2735-Y)
    • 1.6 MHz (LM2735-X)
    • Uses Small Surface Mount Inductors and Chip Capacitors
    • Tiny SOT-23, WSON, and MSOP-PowerPAD Packages
  • LM2735-Q1 is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow
产品应用
  • LCD Display Backlighting For Portable Applications
  • OLED Panel Power Supply
  • USB-Powered Devices
  • Digital Still and Video Cameras
  • White LED Current Source
  • Automotive
产品说明

The LM2735 device is an easy-to-use, space-efficient 2.1-A low-side switch regulator, ideal for Boost and SEPIC DC-DC regulation. The device provides all the active functions to provide local DC-DC conversion with fast-transient response and accurate regulation in the smallest PCB area. Switching frequency is internally set to either 520 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductor and chip capacitors, while providing efficiencies of up to 90%. Current-mode control and internal compensation provide ease-of-use, minimal component count, and high-performance regulation over a wide range of operating conditions. External shutdown features an ultra-low standby current of 80 nA, ideal for portable applications. Tiny SOT-23, WSON, and MSOP-PowerPAD packages provide space savings. Additional features include internal soft start, circuitry to reduce inrush current, pulse-by-pulse current limit, and thermal shutdown.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
LM2735WSON (6)3.00 mm × 3.00 mm
SOT-23 (5)1.60 mm × 2.90 mm
MSOP-PowerPAD (8)3.00 mm × 3.00 mm
LM2735-Q1WSON (6)3.00 mm × 3.00 mm
SOT-23 (5)1.60 mm × 2.90 mm
