LM317L技术文档下载：

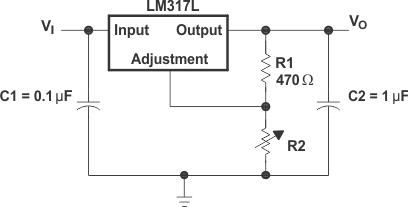

LM317L - 产品图解：
LM317L - 3/8 引脚 100mA 可调节正电压稳压器
LM317L是TI公司的一款单通道LDO产品，LM317L是3/8 引脚 100mA 可调节正电压稳压器，本页介绍了LM317L的产品说明、应用、特性等，并给出了与LM317L相关的TI元器件型号供参考。
LM317L - 3/8 引脚 100mA 可调节正电压稳压器 - 单通道LDO - 线性稳压器(LDO) - TI公司（Texas Instruments，德州仪器）
产品特性
- Output Voltage Range Adjustable 1.25V to 32V When Used With External Resistor Divider
- Output Current Capability of 100 mA
- Input Regulation Typically 0.01% Per Input-Voltage Change
- Output Regulation Typically 0.5%
- Ripple Rejection Typically 80 dB
- For Higher Output Current Requirements, SeeLM317M(500 mA) and LM317(1.5 A)
产品应用
- Electronic Points of Sale
- Medical, Health, and Fitness Applications
- Printers
- Appliances and White Goods
- TV Set-Top Boxes
产品说明
The LM317L device is an adjustable, 3-terminal, positive-voltage regulator capable of supplying 100mA over an output-voltage range of 1.25V to 32V. It is exceptionally easy to use and requires only two external resistors to set the output voltage.
Device Information
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LM317L | SOIC (8) | 4.90 mm × 3.91 mm |
| TO-92 (3) | 4.30 mm × 4.30 mm | |
| SOT-89 (3) | 4.50 mm × 2.50 mm | |
| TSSOP (8) | 3.00 mm × 4.40 mm |
