LMK03318 - 超低抖动时钟发生器系列
LMK03318是TI公司的一款超低抖动(300fsec-RMS)产品,LMK03318是超低抖动时钟发生器系列,本页介绍了LMK03318的产品说明、应用、特性等,并给出了与LMK03318相关的TI元器件型号供参考。
LMK03318 - 超低抖动时钟发生器系列 - 超低抖动(300fsec-RMS) - 时钟发生器 - TI公司(Texas Instruments,德州仪器)
产品特性
- Ultra-Low Noise, High Performance
- Jitter: 100-fs RMS Typical, FOUT > 100 MHz
- PSRR: –70 dBc, Robust Supply Noise Immunity
- Flexible Device Options
- Up to 8 AC-LVPECL, AC-LVDS, AC-CML, HCSL or LVCMOS Outputs or Any Combination
- Pin Mode, I2C Mode, EEPROM Mode
- 71-Pin Selectable Pre-programmed Default Start-up Options
- Dual Inputs with Automatic or Manual Selection
- Crystal Input: 10 to 52 MHz
- External Input: 1 to 300 MHz
- Frequency Margining Options
- Fine frequency Margining Using Low-Cost Pullable Crystal Reference
- Glitchless Coarse Frequency Margining (%) Using Output Dividers
- Other Features
- Supply: 3.3 V Core, 1.8 V, 2.5 V, or 3.3 V Output Supply
- Industrial Temperature Range (–40ºC to 85ºC)
产品应用
- Switches and Routers
- Network and Telecom Line Cards
- Servers and Storage Systems
- Wireless Base Station
产品说明

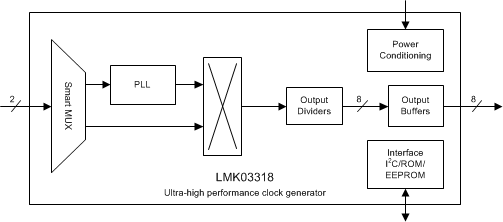

The LMK03318 is an ultra-low-noise PLLatinumTM clock generator with one fractional-N frequency synthesizer with integrated VCO, flexible clock distribution/fanout, and pin-selectable configuration states stored in on-chip EEPROM. The device can generate multiple clocks for various multi-gigabit serial interfaces and digital devices, thus reducing BOM cost and board area and improving reliability by replacing multiple oscillators and clock distribution devices. The ultra-low jitter reduces bit-error rate (BER) in high-speed serial links.
产品器件信息
PART NUMBER | PACKAGE | BODY SIZE (NOM) |
---|---|---|
LMK03318 | WQFN (48) | 7.00 mm × 7.00 mm |
