LP2985A-18技术文档下载：

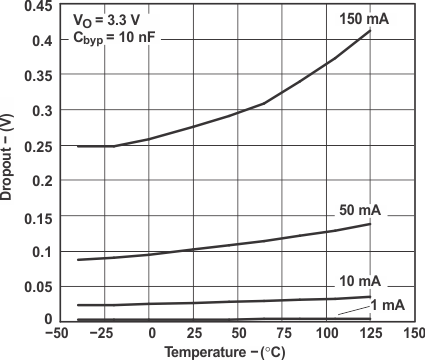

LP2985A-18 - 产品图解：
LP2985A-18 - 具有关断状态的 150mA、1% 容限、低噪声低压降稳压器
LP2985A-18是TI公司的一款单通道LDO产品，LP2985A-18是具有关断状态的 150mA、1% 容限、低噪声低压降稳压器，本页介绍了LP2985A-18的产品说明、应用、特性等，并给出了与LP2985A-18相关的TI元器件型号供参考。
LP2985A-18 - 具有关断状态的 150mA、1% 容限、低噪声低压降稳压器 - 单通道LDO - 线性稳压器(LDO) - TI公司（Texas Instruments，德州仪器）
产品特性
- Output Tolerance of
- 1% (A Grade)
- 1.5% (Standard Grade)
- Ultra-Low Dropout, Typically
- 280 mV at Full Load of 150 mA
- 7 mV at 1 mA
- Wide VIN Range: 16 V Max
- Low IQ: 850 μA at Full Load at 150 mA
- Shutdown Current: 0.01 μA Typ
- Low Noise: 30 μVRMS With 10-nF Bypass Capacitor
- Stable With Low-ESR Capacitors, Including Ceramic
- Overcurrent and Thermal Protection
- High Peak-Current Capability
- ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
产品应用
- Portable Devices
- Digital Cameras and Camcorders
- CD Players
- MP3 Players
产品说明
The LP2985 family of fixed-output, low-dropout regulators offers exceptional, cost-effective performance for both portable and nonportable applications. Available in voltages of 1.8 V, 2.5 V, 2.8 V, 2.9 V, 3 V, 3.1 V, 3.3V, 5V, and 10V, the family has an output tolerance of 1% for the A version (1.5% for the non-A version) and is capable of delivering 150-mA continuous load current. Standard regulator features, such as overcurrent and overtemperature protection, are included.
产品器件信息
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| LP2985 | SOT-23 (5) | 2.90 mm x 1.60 mm |
