SN54HC164是TI公司的一款移位寄存器产品，SN54HC164是8 位并行输出串行移位寄存器，本页介绍了SN54HC164的产品说明、应用、特性等，并给出了与SN54HC164相关的TI元器件型号供参考。
SN54HC164 - 8 位并行输出串行移位寄存器 - 移位寄存器 - 触发器/锁存器/寄存器 - TI公司（Texas Instruments，德州仪器）
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up to 10 LSTTL Loads
- Low Power Consumption, 80-μA Maximum ICC
- Typical tpd = 20 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1-μA Maximum
- AND-Gated (Enable/Disable) Serial Inputs
- Fully Buffered Clock and Serial Inputs
- Direct Clear
- On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
- Programable Logic Controllers
- Appliances
- Video Display Systems
- Output Expander

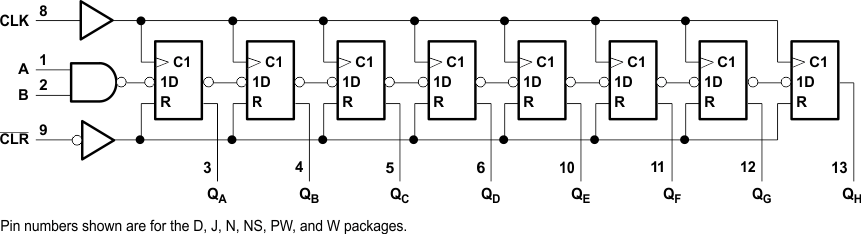

These 8-bit shift registers feature AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum set-up time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74HC164 | SOIC (14) | 8.65 mm × 3.91 mm |
| PDIP (14) | 19.30 mm × 6.35 mm | |
| SO (14) | 10.30 mm × 5.30 mm | |
| TSSOP (14) | 5.00 mm × 4.40 mm | |
| SN54HC164 | CDIP (14) | 19.94 mm × 6.92 mm |
| CFP (14) | 9.21 mm × 6.29 mm | |
| LCCC (14) | 9.39 mm × 9.39 mm |
