SN74CBTLV3253是TI公司的一款数字多路复用器/多路解复用器产品，SN74CBTLV3253是低电压双路 4 选 1 FET 多路复用器/多路解复用器，本页介绍了SN74CBTLV3253的产品说明、应用、特性等，并给出了与SN74CBTLV3253相关的TI元器件型号供参考。
SN74CBTLV3253 - 低电压双路 4 选 1 FET 多路复用器/多路解复用器 - 数字多路复用器/多路解复用器 - 多路复用器/多路解复用器(Mux/Demux) - TI公司（Texas Instruments，德州仪器）
- Functionally Equivalent to QS3253
- 5-Ω Switch Connection Between Two Ports
- Rail-to-Rail Switching on Data I/O Ports
- Ioff Supports Partial-Power-Down Mode Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- Video Broadcasting: IP-Based Multi-Format Transcoders
- Video Communications Systems

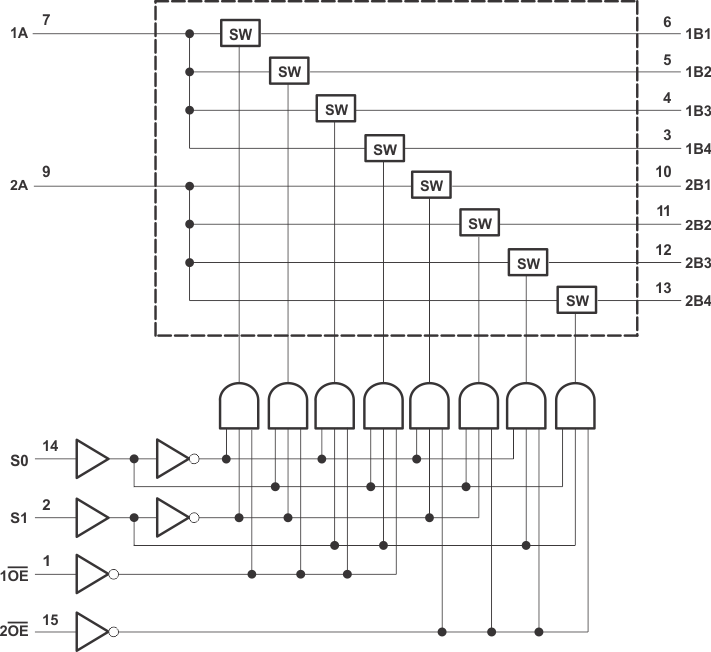

The SN74CBTLV3253 device is a dual 1-of-4 high-speed FET multiplexer and demultiplexer. The low ON-state resistance of the switch allows connections to be made with minimal propagation delay.
The select (S0, S1) inputs control the data flow. The FET multiplexers/demultiplexers are disabled when the associated output-enable (OE) input is high.
The SN74CBTLV3253 device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| SN74CBTLV3253D | SOIC (16) | 9.90 mm × 3.90 mm |
| SN74CBTLV3253DBQ | SSOP (16) | 4.90 mm × 3.90 mm |
| SN74CBTLV3253DGV | TVSOP (16) | 3.60 mm × 4.40 mm |
| SN74CBTLV3253RGY | VQFN (16) | 4.00 mm × 3.50 mm |
| SN74CBTLV3253PW | TSSOP (16) | 5.00 mm × 4.40 mm |
