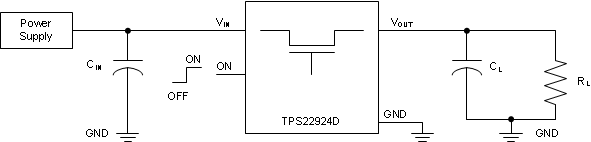

TPS22924D - 产品图解:
TPS22924D-Ultra Small, Low-Input Voltage, Ultra-Low rON Load Switch
TPS22924D-配电与蓄电-集成负载开关-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS22924D介绍
TPS22924D - Ultra Small, Low-Input Voltage, Ultra-Low rON Load Switch

TPS22924D是TI公司的一款配电与蓄电产品,TPS22924D是Ultra Small, Low-Input Voltage, Ultra-Low rON Load Switch,本页介绍了TPS22924D的产品说明、应用、特性等,并给出了与TPS22924D相关的TI元器件型号供参考。

TPS22924D - Ultra Small, Low-Input Voltage, Ultra-Low rON Load Switch - 配电与蓄电 - 集成负载开关 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Integrated Single-Channel Load Switch
  • Input Voltage: 0.75 V to 3.6 V
  • On-Resistance
    • rON = 18.3 mΩ at VIN = 3.6 V
    • rON = 18.5 mΩ at VIN = 2.5 V
    • rON = 19.6 mΩ at VIN = 1.8 V
    • rON = 19.4 mΩ at VIN = 1.2 V
    • rON = 20.3 mΩ at VIN = 1.0 V
    • rON = 22.7 mΩ at VIN = 0.75 V
  • Small CSP-6 package 0.9 mm x 1.4 mm, 0.5-mm Pitch
  • 2-A Maximum Continuous Switch Current
  • Low Shutdown Current
  • Low Threshold Control Input
  • Controlled Slew Rate to Avoid Inrush Currents
  • Quick Output Discharge Transistor
  • ESD Performance Tested Per JESD 22
    • 5000-V Human-Body Model (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
产品应用
  • Battery Powered Equipment
  • Portable Industrial Equipment
  • Portable Medical Equipment
  • Portable Media Players
  • Point of Sales Terminal
  • GPS Devices
  • Digital Cameras
  • Notebooks / Tablet PCs / eReaders
  • Smartphones
产品说明

The TPS22924D is a small, low RON load switch with controlled turn on. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V. An integrated charge pump biases the NMOS switch to achieve a minimum switch ON resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.

A 1250 Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time of the device is internally controlled to avoid inrush current. The TPS22924D features a rise time of 6200 µs at 3.6 V.

The TPS22924D is available in an ultra-small, space-saving 6-pin CSP package and is characterized for operation over the free-air temperature range of –40ºC to 85ºC.

Device Information (1)
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS22924DDSBGA (6) 0.9 mm x 1.4 mm
