当前位置:TI公司 > > TI芯片 >> TPS54310
TPS54310技术文档下载:
TPS54310技术文档产品手册下载

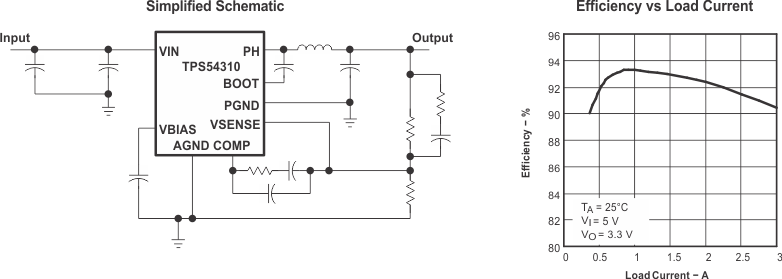

TPS54310 - 产品图解:
TPS54310-具有可调节输出电压的低输入电压 3A 同步降压转换器
TPS54310-转换器(集成开关)-DC/DC开关稳压器-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS54310介绍
TPS54310 - 具有可调节输出电压的低输入电压 3A 同步降压转换器

TPS54310是TI公司的一款转换器(集成开关)产品,TPS54310是具有可调节输出电压的低输入电压 3A 同步降压转换器,本页介绍了TPS54310的产品说明、应用、特性等,并给出了与TPS54310相关的TI元器件型号供参考。

TPS54310 - 具有可调节输出电压的低输入电压 3A 同步降压转换器 - 转换器(集成开关) - DC/DC开关稳压器 - TI公司(Texas Instruments,德州仪器)

产品特性
  • 60-mΩ MOSFET Switches for High Efficiency at 3-A Continuous Output Source or Sink Current
  • Adjustable Output Voltage Down to 0.9 V With 1% Accuracy
  • Externally Compensated for Design Flexibility
  • Fast Transient Response
  • Wide PWM Frequency: Fixed 350 kHz, 550  kHz, or Adjustable 280 kHz to 700 kHz
  • Load Protected by Peak Current Limit and Thermal Shutdown
  • Integrated Solution Reduces Board Area and Total Cost
产品应用
  • Low-Voltage, High-Density Systems With Power Distributed at 5 V or 3.3 V
  • Point of Load Regulation for High Performance DSPs, FPGAs, ASICs, and Microprocessors
  • Broadband, Networking and Optical Communications Infrastructure
  • Portable Computing/Notebook PCs
产品说明

As members of the SWIFT™ family of dc/dc regulators, the TPS54310 low-input-voltage high- output-current synchronous-buck PWM converter integrates all required active components. Included on the substrate with the listed features are a true, high performance, voltage error amplifier that provides high performance under transient conditions; an undervoltage-lockout circuit to prevent start-up until the input voltage reaches 3 V; an internally and externally set slow-start circuit to limit in-rush currents; and a power good output useful for processor/logic reset, fault signaling, and supply sequencing.

The TPS54310 device is available in a thermally enhanced 20-pin HTSSOP (PWP) PowerPAD™ package, which eliminates bulky heatsinks. TI provides evaluation modules and the SWIFT designer software tool to aid in quickly achieving high- performance power supply designs to meet aggressive equipment development cycles.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS54310HTSSOP PowerPAD (20)6.30 mm × 6.40 mm
