TPS60503是TI公司的一款电荷泵（无感应器）产品，TPS60503是250mA 1.5V 高效降压充电泵，本页介绍了TPS60503的产品说明、应用、特性等，并给出了与TPS60503相关的TI元器件型号供参考。
TPS60503 - 250mA 1.5V 高效降压充电泵 - 电荷泵（无感应器） - DC/DC开关稳压器 - TI公司（Texas Instruments，德州仪器）
- Wide Input Voltage Range From 1.8 V to 6.5 V
- Regulated 3.3-V, 1.8-V, 1.5-V, or Adjustable Output Voltage
- Up to 250-mA Output Current
- Up to 90% Efficiency
- Output Voltage Tolerance 3% Over Line, Load, and Temperature Variation
- Device Quiescent Current Less Than 40 µA
- Output Voltage Supervisor Included (Power Good)
- Internal Soft Start
- Load Isolated From Battery During Shutdown
- Overtemperature and Overcurrent Protected
- Micro-Small 10-Pin VSSOP Package
- EVM Available, TPS60500EVM-193
- Mobile Phones
- Portable Instruments
- Internet Audio Player
- PC Peripherals
- USB Powered Applications
The TPS6050x devices are a family of switched capacitor voltage converters, designed specifically for space-critical battery-powered applications.

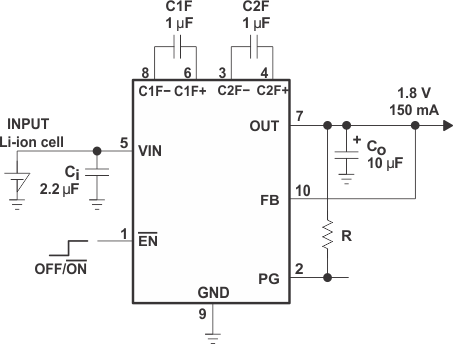

The TPS6050x step-down charge pumps generate a regulated, fixed 3.3-V, 1.8-V, 1.5-V, or adjustable output voltage. Only four small ceramic capacitors are required to build a complete high-efficiency DC–DC charge pump converter. To achieve the high efficiency over a wide input voltage range, the charge pump automatically selects between three different conversion modes. The output can deliver a maximum of 250-mA output current. The power good function supervises the output voltage and goes high when the output voltage rises to 97% of the nominal value.
The TPS6050x devices come in a micro-small 10-pin VSSOP package.
| PART NUMBER | PACKAGE | BODY SIZE (NOM) |
|---|---|---|
| TPS60500 TPS60501 TPS60502 TPS60503 | VSSOP (10) | 3.05 mm × 4.98 mm |
