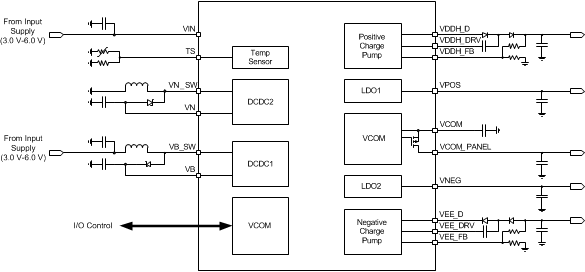

TPS65186 - 产品图解:
TPS65186-PMIC,用于启用 E-Ink? Vizplex? 技术的电子纸显示器
TPS65186-电流感应放大器、I2C/PMBus监控器-保护、监控和热插拔-电源管理
承诺原装正品
专营TI,真正优化您的供应链
TI产品 - TPS65186介绍
TPS65186 - PMIC,用于启用 E-Ink? Vizplex? 技术的电子纸显示器

TPS65186是TI公司的一款电流感应放大器、I2C/PMBus监控器产品,TPS65186是PMIC,用于启用 E-Ink? Vizplex? 技术的电子纸显示器,本页介绍了TPS65186的产品说明、应用、特性等,并给出了与TPS65186相关的TI元器件型号供参考。

TPS65186 - PMIC,用于启用 E-Ink? Vizplex? 技术的电子纸显示器 - 电流感应放大器、I2C/PMBus监控器 - 保护、监控和热插拔 - TI公司(Texas Instruments,德州仪器)

产品特性
  • Single Chip Power-Management Solution forE Ink®Vizplex™ Electronic Paper Displays
  • Generates Positive and Negative Gates, Source Driver Voltages, and Back-Plane Bias From a Single, Low-Voltage Input Supply
  • Supports 9.7 Inch and Larger Panel Size
  • 3-V to 6-V Input Voltage Range
  • Boost Converter for Positive Rail Base
  • Inverting Buck-Boost Converter for Negative Rail Base
  • Two Adjustable LDOs for Source Driver Supply
    • LDO1: 15 V, 120 mA (VPOS)
    • LDO2: –15 V, 120 mA (VNEG)
  • Accurate Output Voltage Tracking
    • VPOS – VNEG = ±50 mV
  • Two Charge Pumps for Gate Driver Supply
    • CP1: 22 V, 10 mA (VDDH)
    • CP2: –20 V, 12 mA, (VEE)
  • Adjustable VCOM Driver for Accurate Panel-Backplane Biasing
    • 0 V to –5.11 V
    • ± 1.5% accuracy (±10 mV)
    • 9-Bit Control (10-mV Nominal Step Size)
  • Integrated 10-Ω, 3.3-V Power Switch for Disabling System Power Rail to E-Ink Panel
产品应用
  • Power Supply for Active Matrix E Ink Vizplex Panels
  • EPD Power Supplies
  • E-Book Readers
  • EPSON® S1D13522 (ISIS) Timing Controller
  • EPSON® S1D13521 (Broadsheet) Timing Controller
  • Application Processors With Integrated or Software Timing Controller (OMAP™)
产品说明

The TPS65186 device is a single-chip power supply designed to for E Ink Vizplex displays used in portable e-reader applications, and the device supports panel sizes up to 9.7 inches and greater. Two high-efficiency DC-DC boost converters generate ±16-V rails that are boosted to 22 V and –20 V by two change pumps to provide the gate driver supply for the Vizplex panel. Two tracking LDOs create the ±15-V source driver supplies that support up to 120-mA of output current. All rails are adjustable through the I2C interface to accommodate specific panel requirements.

产品器件信息
PART NUMBERPACKAGEBODY SIZE (NOM)
TPS65186VQFN (48)7.00 mm × 7.00 mm
